About Our 5-Layer Thermoshrinkable Plastic Casings

We stock 5-layer thermoshrinkable plastic casings manufactured from PA/PE (Polyamide/Polyethylene) multilayer film. The 5-layer structure provides very good water vapor, oxygen, and UV barrier properties and can help protect product aroma, freshness, and shelf life, depending on the product formulation, processing conditions, packaging, and storage conditions.

These casings are thermoshrinkable. They shrink tightly around the product during thermal processing, producing an unwrinkled, smooth, professional surface appearance. Food grade plastic casing, manufactured using virgin PA/PE polymers suitable for food contact applications.

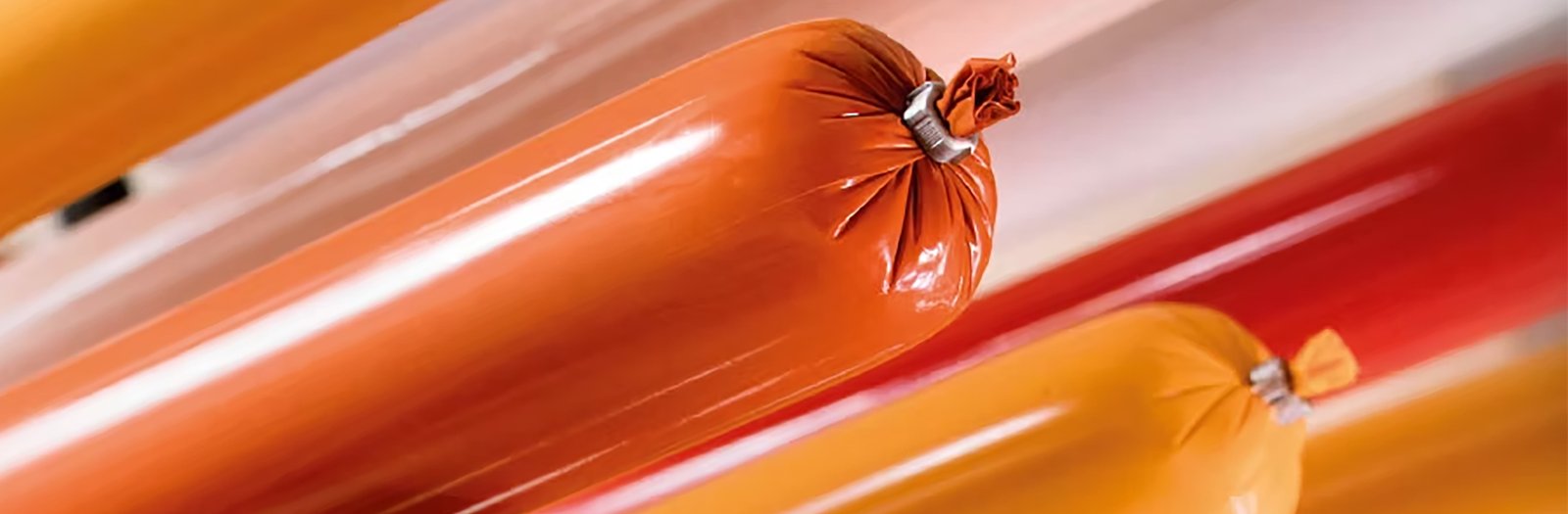

Plastic sausage casings in various colors

Available Formats

Shirred, compact shirred sticks for automatic stuffing lines
Non shirred cut lengths, for manual production
Reels, continuous casing on the reel for lines that cut and clip in house

A shirred stick is a pre shirred length of casing compressed into a compact stick, allowing the casing to feed continuously onto the stuffing horn during production.

Typical Applications

Cooked Salami
Cooked Beef Salami
Liverwurst
Bologna
Chicken Bologna
Chicken Sausages
Mortadella
Salchichon
Black Pudding
White Pudding
Ground Beef
Ground Pork

✅ This list is not exhaustive. Plastic casings are suitable for a wide range of cooked and processed products that do not require smoke permeability. Contact us at 201-939-3335 to confirm the right casing for your specific product.

Technical Specifications

Property	Value	Method
Construction	5-layer thermoshrinkable PA/PE	N/A
Free thermoshrinkability (longitudinal/transverse)	10 ± 2%	70–75°C (own method)
Thermal resistance	–20°C to +90°C	N/A
Maximum processing temperature	90°C	N/A
O₂ gas permeability	Max. 35 cm³/m²/24h/bar	ASTM D 3985-05 [23°C, 0% RH]
Water vapor permeability (H₂O)	Max. 45 g/m²/24h/bar	ASTM F 1249-05 [38°C, 90% RH]
Min. internal tensile strength	0.05 MPa	N/A
Shelf life, non shirred	12 months from delivery	N/A
Shelf life, shirred	6 months from delivery	N/A
Product shelf life (packed)	Up to 90 days	Depending on product and processing
Food contact	Food grade. Virgin polymers, suitable for food contact applications	N/A

Available Diameters and Size Chart

Plastic casings do not use size codes. You order by nominal diameter, available from 30 mm through 160 mm. The nominal diameter is also the stuffing diameter: stuff to the nominal diameter for a finished product of that size. If needed, the casing can be overstuffed by approximately 2% to 5%, which makes the finished diameter slightly larger, as shown in the chart.

Diameter, Circumference, and Lay Flat Width

Some processors measure a casing by circumference or by lay flat width (the width of the casing pressed flat) instead of diameter. These can be used as a reference, but the most accurate way to choose your casing is by the finished stuffing diameter. Circumference measured on the stuffed product right after stuffing, before cooking or further processing, is a reliable check. Heat processing can change the size, so a measurement taken after processing will not reflect the true stuffed size.

Diameter

Straight line measurement across the casing.
Example: 105 mm (4.13 in)

Circumference

Distance around the casing.
Example: 330 mm (12.99 in)

Lay Flat Width

Width when the casing is pressed flat.
Example: 165 mm (6.49 in)

Example measurements above are for a 105 mm (4.13 in) nominal diameter casing, flat and unstuffed.

About the lay flat and circumference columns: both are approximate guides calculated from the nominal diameter. Actual measurements can vary slightly, so use the stuffing diameter as your primary reference.

Nominal Diameter (mm)	Nominal Diameter (in)	Stuffing Diameter (mm)	If Overstuffed 2% to 5% (mm)	Approx. Circumference	Approx. Lay Flat Width
30	1.18"	30	30.6 to 31.5	94 mm (3.7")	47 mm (1.9")
35	1.38"	35	35.7 to 36.8	110 mm (4.3")	55 mm (2.2")
40	1.57"	40	40.8 to 42.0	126 mm (5.0")	63 mm (2.5")
45	1.77"	45	45.9 to 47.2	141 mm (5.6")	71 mm (2.8")
50	1.97"	50	51.0 to 52.5	157 mm (6.2")	79 mm (3.1")
55	2.17"	55	56.1 to 57.8	173 mm (6.8")	86 mm (3.4")
60	2.36"	60	61.2 to 63.0	188 mm (7.4")	94 mm (3.7")
65	2.56"	65	66.3 to 68.2	204 mm (8.0")	102 mm (4.0")
70	2.76"	70	71.4 to 73.5	220 mm (8.7")	110 mm (4.3")
75	2.95"	75	76.5 to 78.8	236 mm (9.3")	118 mm (4.6")
80	3.15"	80	81.6 to 84.0	251 mm (9.9")	126 mm (5.0")
85	3.35"	85	86.7 to 89.2	267 mm (10.5")	134 mm (5.3")
90	3.54"	90	91.8 to 94.5	283 mm (11.1")	141 mm (5.6")
95	3.74"	95	96.9 to 99.8	298 mm (11.7")	149 mm (5.9")
100	3.94"	100	102.0 to 105.0	314 mm (12.4")	157 mm (6.2")
105	4.13"	105	107.1 to 110.2	330 mm (13.0")	165 mm (6.5")
110	4.33"	110	112.2 to 115.5	346 mm (13.6")	173 mm (6.8")
115	4.53"	115	117.3 to 120.8	361 mm (14.2")	181 mm (7.1")
120	4.72"	120	122.4 to 126.0	377 mm (14.8")	188 mm (7.4")
125	4.92"	125	127.5 to 131.2	393 mm (15.5")	196 mm (7.7")
130	5.12"	130	132.6 to 136.5	408 mm (16.1")	204 mm (8.0")
135	5.31"	135	137.7 to 141.8	424 mm (16.7")	212 mm (8.3")
140	5.51"	140	142.8 to 147.0	440 mm (17.3")	220 mm (8.7")
145	5.71"	145	147.9 to 152.2	456 mm (18.0")	228 mm (9.0")
150	5.91"	150	153.0 to 157.5	471 mm (18.5")	236 mm (9.3")
155	6.10"	155	158.1 to 162.8	487 mm (19.2")	243 mm (9.6")
160	6.30"	160	163.2 to 168.0	503 mm (19.8")	251 mm (9.9")

Not every size is stocked at all times. Call 201-939-3335 to confirm current availability.

Key Advantages

Thermoshrinkable, shrinks tightly around product for a smooth, unwrinkled surface
High mechanical resistance, withstands automatic and semi automatic clipping machines
Dimensional stability, consistent caliber for portion weight production
Low oxygen and water vapor permeability, protects aroma and extends shelf life
Designed to minimize moisture and weight loss during thermal processing and storage
Up to 90 days of product shelf life when properly processed and stored
Maintains a smooth, professional appearance throughout normal storage when properly processed and stored

✅ Available in Kosher or Halal versions on select sizes, contact us to confirm availability.

What Can Be Printed

Company name and logo
Product name and description
Barcodes and UPC codes
USDA mark of inspection (for USDA inspected establishments)
Net weight, ingredients, nutrition information, and other product information
Allergen statements
Lot codes, pack dates, and expiration dates
Handling and cooking instructions, including "Keep Refrigerated" or "Keep Frozen"
"Not For Sale" wording for wild game and personal use products
Custom artwork and decorative patterns

✅ This list is not exhaustive. We can print nearly anything a customer needs, contact us at 201-939-3335 to discuss your specific artwork and labeling requirements.

Custom Printing and Lead Time

Plastic casings can be custom printed directly on the thermoshrinkable film, ideal for bologna, luncheon meat, and other large cooked items.

Colors	Lead Time	Minimum Order
1 to 2 colors	1 to 2 weeks	1 to 2 cases, approximately 10,000 feet
3 to 4 colors	1 to 3 weeks	1 to 3 cases, approximately 15,000 feet
More than 4 colors	8 to 12 weeks	Varies by casing size and color, call Globe Casings for details

Plastic Casing, Yield Calculator

Use the calculator below to estimate how much product weight fits in a single casing piece, and how many pieces you need to fill a given production run. Enter your stuffing diameter and piece length to get started.

Stuffing Diameter (mm)

Look up in the size table above

Piece Length (inches)

Cut length. We deduct 5" total for clip & tie (1" front tie + 4" closure end)

Total Batch Weight (lbs)

Optional, for pieces needed

Estimates only. Contact our team at 201-939-3335 for a confirmed recommendation.

Material Composition

PA (Polyamide), provides strength, durability, and gas barrier properties, helping maintain product freshness
PE (Polyethylene), offers flexibility, sealability, and moisture resistance

Recommended Overfilling

Recommended overfilling is approximately 2%–5% for all diameters.

Soaking & Preparation

Soaking and preparation requirements can vary by casing size, format, and manufacturer. The following are general guidelines. Always follow the preparation instructions supplied with the specific casing.

Soak in running water at 20–25°C before use. Do not use higher temperature as this will activate thermoshrinkability
Soak evenly on the inside and outside
Minimum soak time: 30 minutes for non shirred cut sections; 60 minutes for shirred casing
Soak only as much as can be used within 4–5 hours
Change soaking water at least once every 12 hours
The casing must not contact any rough surface during preparation

Example Thermal Processing Schedule (Steam)

Processing conditions must be adjusted for the specific product formulation, casing diameter, equipment, and desired finished product. Follow your established validated process and the casing manufacturer's recommendations.

Step	Chamber Temp	Humidity	Duration / Target
Step 1	55°C	100%	15 minutes
Step 2	65°C	100%	20 minutes
Step 3	70°C	100%	30 minutes or to 60°C core temperature
Step 4	75–90°C	100%	10–15 minutes or to 72°C core temperature
Cool immediately	Cold water / shower	N/A	Until product core drops below 30°C

⚠️ After steam cooking, sausage sticks must be cooled immediately by running water, shower, or programmable sprinklers. Do not place hot sticks directly into the cold room. This will cause wrinkling of the casing surface.

Restrictions

Maximum processing temperature 90°C. Do not exceed
Not suitable for microwave oven heating
Not suitable for consumption, remove before serving
Stick weight should not exceed 4.5 kg for hanging treatment
Do not stack casing rolls without spacers between them
After disinfecting steam chambers with chemicals, rinse thoroughly before use, chemical residue can delaminate casing printing or damage the casing surface

Storage Conditions

Storage and conditioning requirements may vary by casing format. Follow the manufacturer's recommendations for the specific product.

Store in original packaging in a dry, clean, cool location
Storage temperature below 25°C, humidity 30–75%
Unpack directly before use
Keep away from direct sunlight and high temperature sources
Condition at 10–25°C for at least 24 hours before use after transport
If transported below 10°C, extend conditioning time accordingly

Product Gallery

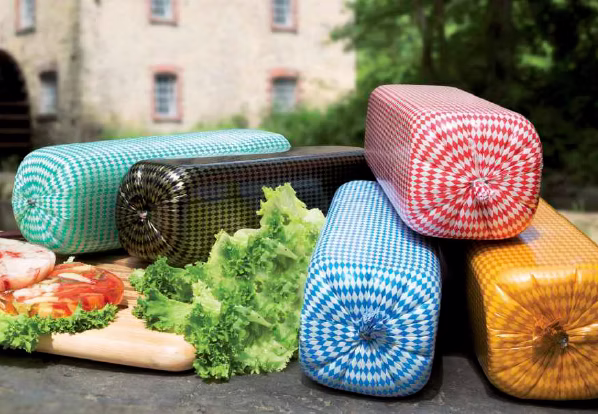

Thermoshrinkable plastic casing, cooked sausage product

Plastic barrier casing, bologna and luncheon meat

Globe Casings plastic casing, large caliber processed meat

Plastic casing, liverwurst and meat spread

Thermoshrinkable plastic casing, mortadella and cooked ham

Plastic barrier casing, cooked product with steam shrink

Globe Casings plastic casing, sirloin and whole muscle product

Plastic casing range, various diameters for processed meat production

Wholesale Supply and Ordering

Globe Casings is a wholesale casing supplier and distributor serving commercial meat processors, butcher shops, packing plants, and specialty producers nationwide. We handle everything from a single case to full truckload bulk orders.

✅ No minimum order on standard products · Large inventory in stock · Fast nationwide shipping from Carlstadt, New Jersey

Related Casing Guides

See how plastic casings compare for specific products: Best Casing for Bologna and Best Casing for Pet Food.
